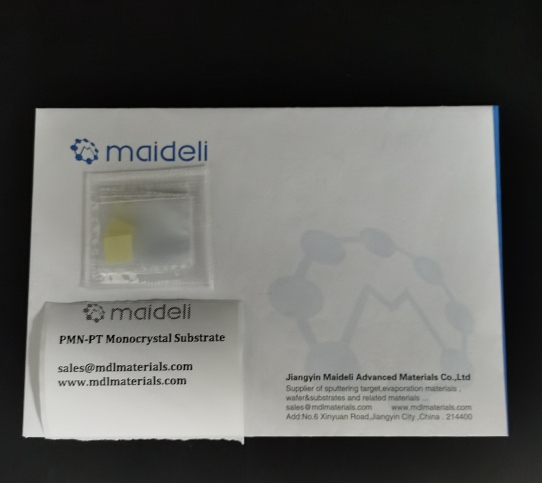

PMN-PT Single Crystal
PMN-PT = Pb(Mg1/2Nb2/3)xTiyZrzO3 x+y+z=1
Typical Physical Properties:
| Density | 8.1 g/cm3 | |
| Melt Point | 1280 °C | |
| Standard size: | Length x Width | Thickness |
| 5 x 3 mm | 0.5mm / 1.0mm ,or other thickness the customers request | |
| 5 x 5 mm | ||
| 6.35x6.35mm | ||
| 10x5mm | ||
| 10x10mm | ||
| 12.7x12.7mm | ||
| 15x15mm | ||
| Surface: | one side polished | Both sides polished |
| Orientation | <100>+/-0.5degree | |
| <110>+/-0.5degree | ||
| <111>+/-0.5degree | ||
Please send us your request with below details to " sales@mdlmaterials.com"
1. Size （Length / Width / Thickness)
2. Orientation
3. Polishing Side (SSP or DSP )
